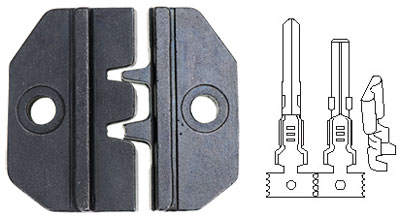

TERMINAL CRIMPER DIE (OPEN BARREL AWG 18-30)

TERMINAL CRIMPER DIE (OPEN BARREL AWG 18-30) (E9PK-3003D36)

SKU: E9PK-3003D36

Category: Electrical

Price:$19.95
For AWG18 to AWG30 wire diameters. Crimps Open Barrel Terminals such as D-Subminiature, Amp, Molex, ITT, and Cannon.

Fits crimpers: E300-002, E300-005, E300-003, E500-037, E500-054, E902-085, E902-137, E902-138, and E902-152

Part Number Crimp Die and Terminals Application Crimp Size
Coaxial Connectors
E1PK-3003D34 E1PK-3003D34 HDTV, SMA, True 75-ohm BNC/TNC & mini-UHF, RG174, RG59/62, mini-coaxial & Belden 1855A SQ .042", HEX .068, .178", .197, .255", SQ 1.07mm, HEX 1.73, 4.52, 5.00, 6.48mm
E1PK-3003D33 E902-201 HDTV BNC/TNC 3-piece coaxial connectors SQ .042", HEX.178", .275", SQ 1.07mm, HEX 4.52, 6.99mm
E1PK-3003D30 E902-201 HDTV BNC/TNC 3-piece coaxial connectors SQ. 042", Hex .197", .278", SQ 1.07mm, HEX 5.00, 7.06mm
E1PK-3003D31 E902-201 HDTV BNC/TNC true 75-ohm coaxial connectors, RG6, Belden 1694 & 1694A SQ.042", HEX.068", .275", .278" SQ 1.07mm, HEX 1.73, 6.99, 7.06mm
E300-038 E902-201 BNC, TNC, Mini-UHF, RG58, 141, 142, 303, 400, 59, 62, 210 Belden 8279, 8281, 9231, 9141 RG-6, 212, 222, 304 HEX .068", .098", .213", .255", .321", HEX 1.73, 2.49, 5.41, 6.48, 8.15mm
E300-049 E902-201 RG8, RG11, RG213, RG216 BNC, TNC and N Series Connectors LMR400 HEX .80", .100", .429" HEX 2.03, 2.54, 10.90mm
E902-054 E902-201 Combi-Die for RJ45 WE/SS Modular plugs and RG6/6Q(CATV F-Type) RJ45 plug HEX .324", .360" HEX 8.23, 9.14mm
Electrical and Industrial Terminals
E300-104 E902-201 Miniature Insulated Terminals Nylon and Vinyl AWG 26-16, DIN 0.2-1.5mm
E300-058  E902-201 Red, Yellow, Blue Insulated terminals AWG 10-12, 14-16, 18-22 Nylon and Vinyl AWG 22-18 / 16-14 / 12-10, DIN 0.5-1.0 / 1.5-2.5 / 4.0- 6.0mm
E9PK-3003D27 E902-201 Insulated Terminals AWG 22-18 / 16-14 / 12-10 / 8, DIN 0.5-1.0 / 1.5-2.5 / 4.0-6.0 /10.0mm
E300-095 E902-201 Uninsulated Terminals AWG 20-18 / 16-14 / 12-10 / 8, DIN 0.5-1.0 / 1.5-2.5 / 4.0-6.0 / 10.0mm
E9PK-3003D36 E902-201 Open Barrel Contacts Molex/Tyco, D-Sub, Molex, AMP Style Pin AWG 30-24 / 22-18, DIN 0.05 0.25 / 0.5-1.0mm
E300-039 E902-201 Open barrel contacts D-sub, Molex, AMP style pin AWG 20-18 / 16-14 / 12-10, DIN 0.5-1.0 / 1.5-2.5 / 4.0-6.0mm
E300-070 E902-201 For Red and Blue Insulated Flag Terminals AWG 22-18, 16-14 AWG 22-18 / 16-14, DIN 0.5-1.0 / 1.5-2.5mm
E9PK-3003D42 E902-201 For Yellow and Blue insulated Flag Terminals AWG 16-14 / 12-10, DIN 1.5-2.5 / 4.0 / 6.0mm
E300-097 E902-201 Wire ferrules (Insulated and Non-Insulated) AWG 22 / 20 / 18 / 16 / 14 / 12, DIN 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0mm
1 lbs (0.5Kg) shipping weight.
