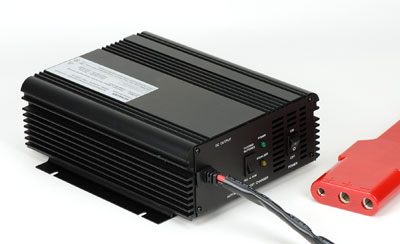

SCHAUER® BATTERY CHARGER/GPU (24V/3 PIN CONNECTOR)

SCHAUER® BATTERY CHARGER/GPU (24V/3 PIN CONNECTOR) (JAC2024H-3)

SKU: JAC2024H-3

Category: Electrical

Product Features

  • Cessna ground power port Plug and set of Battery Clips
Price:$514.95

Schauer’s new generation battery charger/GPU features computer-controlled battery charging. Intelligent chargers follow battery impedance to end of charge cycle. For all lead-acid battery types, including conventional, maintenance free, deep cycle, gelled type, & valve regulated types.

Product specifications: 24 volt charger. 20 amps cranking power,

Schauer® Aviation Battery Charger/Ground Power Unit:

  • Charge control: constant current charge to a constant voltage, then float standby.
  • Fully automatic 3 stage charger can be left on the battery in maintaining mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Cyclic voltage: FLOODED 2.5 volts/cell; GEL & AGM 2.4 volts/cell. 2.6 volts/cell for 36 & 48 volt batteries. May be preset to customer's specification for battery type.
  • Will start charging a deeply discharged battery with less than 4 volts.
  • Current limiting, Reverse polarity, and short circuit proof.
Part NumberVoltAmpsDescription
JAC2512-31225Charger/GPU with 3-Pin Power Plug
JAC2024H-32420
JAC2512-11225Charger/GPU with 1-Pin Power Plug
JAC2024H-12420
10 lbs (4.5Kg) shipping weight.
