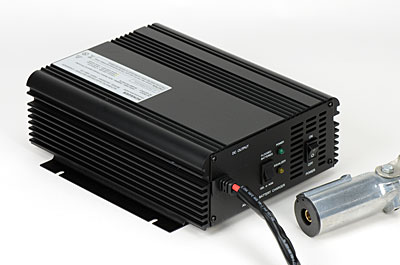

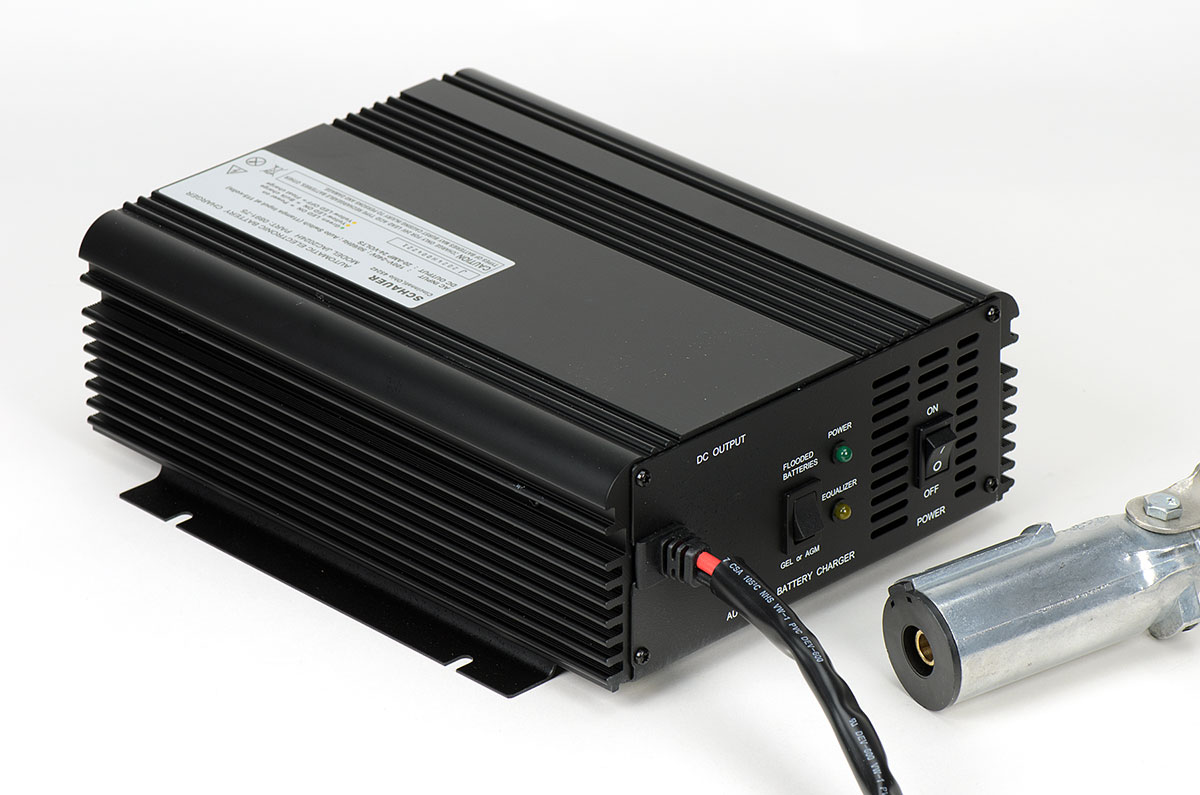

SCHAUER® BATTERY CHARGER/GPU (24V/1 PIN CONNECTOR)

SCHAUER® BATTERY CHARGER/GPU (24V/1 PIN CONNECTOR) (JAC2024H-1)

SKU: JAC2024H-1

Category: Electrical

Product Features

  • Piper ground power port plug and set of Battery Clips
Price:$460.95

Schauer’s new generation battery charger/GPU features computer-controlled battery charging, plus enough cranking amps to start the airplane if the battery is competely dead. Intelligent chargers follow battery impedance to end of charge cycle. For all lead-acid battery types, including conventional, maintenance free, deep cycle, gelled type, & valve regulated types.

Product specifications: 24 volt charger. 20 amps cranking power

Schauer® Aviation Battery Charger/Ground Power Unit:

  • Charge control: constant current charge to a constant voltage, then float standby.
  • Fully automatic 3 stage charger can be left on the battery in maintaining mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Cyclic voltage: FLOODED 2.5 volts/cell; GEL & AGM 2.4 volts/cell. 2.6 volts/cell for 36 & 48 volt batteries. May be preset to customer's specification for battery type.
  • Will start charging a deeply discharged battery with less than 4 volts.
  • Current limiting, Reverse polarity, and short circuit proof.
Part NumberVoltAmpsDescription
JAC2512-31225Charger/GPU with 3-Pin Power Plug
JAC2024H-32420
JAC2512-11225Charger/GPU with 1-Pin Power Plug
JAC2024H-12420
9 lbs (4Kg) shipping weight.

You might also be interested in...

May we recommend the following accessories to get the most from your selected product? Include any of these items with your purchase by entering the desired quantity before cicking any of the Add To Cart buttons.

BATTERY CHARGER CABLE (1-PIN TYPE WITH PLUG)

SKU: JAC02060-1P

BATTERY CHARGER CABLE (1-PIN TYPE WITH PLUG) (JAC02060-1P)
Replacement cable for Schauer JAC2024 and JAC2512 seires Battery Chargers. 1-Pin Power Plug at one end and a Plug Connector the other. 8" long.
Price:$73.95
