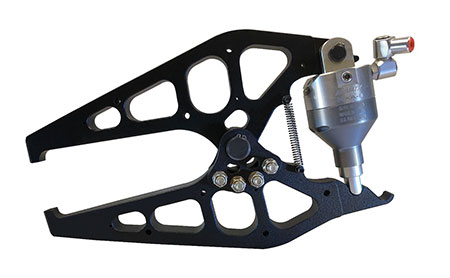

NUMATX 6" ALLIGATOR SQUEEZER HEAD ONLY

SKU: NXA-6

Category: Rivet Squeezers

Product Features

  • Hydraulic action creates 8K lb. maximum force THROUGHOUT the complete stroke of the tool!
  • Extreme Feathering throttle - no "bear-trap" jaw closing for safety and reduction of skin damage.
  • Used with NXI-60 Intensifier Assembly ordered separately.
Price:$3,314.95

Numatx Inc. makes high quality commercial grade compression rivet squeezers, for the installation of solid rivets. Numatx riveters are the SMALLEST and LIGHTEST aerospace grade C-Squeezers and Alligator Squeezers you can buy. Numatx Squeezers also feature CONSTANT FORCE over the entire stroke range. The patented rivet squeezers are fully hydraulic at the forming head portion, which enables the squeezers to be more compact than traditional pneumatic only units. This reduces operator fatigue and improves product quality.

NUMATX, Inc. manufactures the patented Hydropneumatic Riveter System. Numatx riveters are lighter and more compact than existing pneumatic only riveters.

All squeezers have a hydraulic pressure of 3,680 psig, and use 80psi. C squeezers also works with standard CP-214 style yokes.

Part NumberSqueezer HeadPressure IntensifierSqueeze Force
LBF
Yoke Reach
IN
Yoke Gap
IN
Capacity
Alum. / Steel
Weight of Unit Only
LBS
Weight of Complete System
LBS
NXS-C4K0NXC-4NXI-203,600N/AN/AN/A1.321
NXS-C4K15NXC-4NXI-203,6001.51.55/32" alum 1/8" steel2.021
NXS-C4K3NXC-4NXI-203,6003.01.55/32" alum 1/8" steel2.521
NXS-C4K4NXC-4NXI-203,6004.01.55/32" alum 1/8" steel321
NXS-C6K0NXC-6NXI-406,445N/AN/AN/A1.730
NXS-C6K2NXC-6NXI-406,4452.01.53/16" alum 3/16" steel2.530
NXS-C6K3NXC-6NXI-406,4453.01.53/16" alum 3/16" steel2.930
NXS-C6K4NXC-6NXI-406,4454.01.53/16" alum 3/16" steel3.730
NXS-C9K0NXC-9NXI-408,790N/AN/AN/A2.633
NXS-C9K2NXC-9NXI-408,7902.01.53/16" alum 3/16" steel3.433
NXS-C9K3NXC-9NXI-408,7903.01.53/16" alum 3/16" steel3.333
NXS-C9K4NXC-9NXI-408,7904.01.53/16" alum 3/16" steel4.133
Alligator Squeezers Complete Systems with Intensifier.
NXS-A6NXA-6NXI-601010061.381/4" alum 3/16" steel13.854
NXS-A8NXA-8NXI-60786281.383/16" alum 3/16" steel15.756
NXS-A10NXA-10NXI-606416101.383/16" alum 3/16" steel18.359
Alligator Squeezer Heads Only
NXA-6N/AN/A1010061.38NA13.813.8
NXA-8N/AN/A786281.38NA15.715.7
NXA-10N/AN/A6416101.38NA18.318.3
14 lbs (6.5Kg) shipping weight.
